Label Substrate Materials Guide

Why Label Substrate Selection Matters

Choosing the right label substrate material is one of the most critical decisions in label manufacturing. The face stock you select directly impacts your label's durability, appearance, adhesion performance, cost-effectiveness, and ultimately, your brand perception in the marketplace.Choosing the right label substrate material is one of the most critical decisions in label manufacturing. The face stock you select directly impacts your label's durability, appearance, adhesion performance, cost-effectiveness, and ultimately, your brand perception in the marketplace.

At ASAS Label, our state-of-the-art facility in Umm Al Quwain, UAE, combines advanced printing technology—including a 10-color flexographic press, 6-color offset press with CTP, and comprehensive inline finishing capabilities—with deep substrate expertise to help brands across the Middle East and global export markets select the optimal material for every application.

Paper Substrates

60-65% of global label market. Cost-effective with excellent printability.

Synthetic Films

35-40% market share. Superior durability and environmental resistance.

Specialty Materials

Unique visual or functional properties for brand differentiation.

Paper Label Substrates

Most widely used label materials globally, offering excellent printability, cost-effectiveness, and versatility across numerous applications

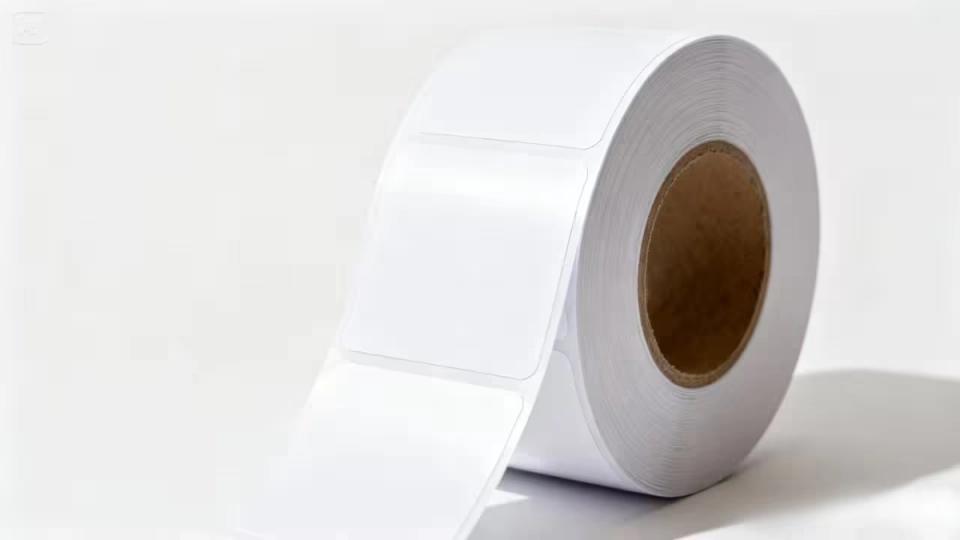

The workhorse of paper labels with moderate sheen and excellent printability

Best for:

Cost-effective for high volume
Excellent ink adhesion
Sharp graphics and text
Compatible with flexo & offset

_{Limited moisture resistance unless laminated. Best for controlled environments.}

Enhanced coating for maximum reflectivity and vibrant color saturation

Best for:

Vibrant color reproduction
Premium shelf appeal
Excellent print quality
Moderate cost premium

_{Shows fingerprints and scuffs. Recommend varnish or lamination protection.}

Elegant non-reflective finish projecting sophistication and premium quality

Best for:

Sophisticated appearance
Superior readability
Less prone to fingerprints
Premium brand perception

_{Pairs exceptionally with spot UV varnish for dramatic contrast effects.}

Enhanced coating for maximum reflectivity and vibrant color saturation

Best for:

Exceptional print quality
Mirror-like gloss
Ice bucket resistance
Premium tactile feel

_{Ideal for embossing. Withstands ice bucket immersion for limited periods.}

Natural texture with organic aesthetic for craft and eco-conscious brands

Best for:

Authentic appearance
Eco-friendly perception
Writable surface
Budget-friendly

_{Requires specialized ink formulations to prevent excessive absorption.}

Heat-sensitive coating for direct thermal or thermal transfer printing

Best for:

No ribbon needed (direct)
Fast print speeds
Excellent barcode quality
Ideal for variable data

_{Direct thermal fades in heat/light. Thermal transfer offers better longevity.}

Synthetic Film Substrates

Polymer-based materials offering superior durability, environmental resistance, and premium appearance for demanding applications

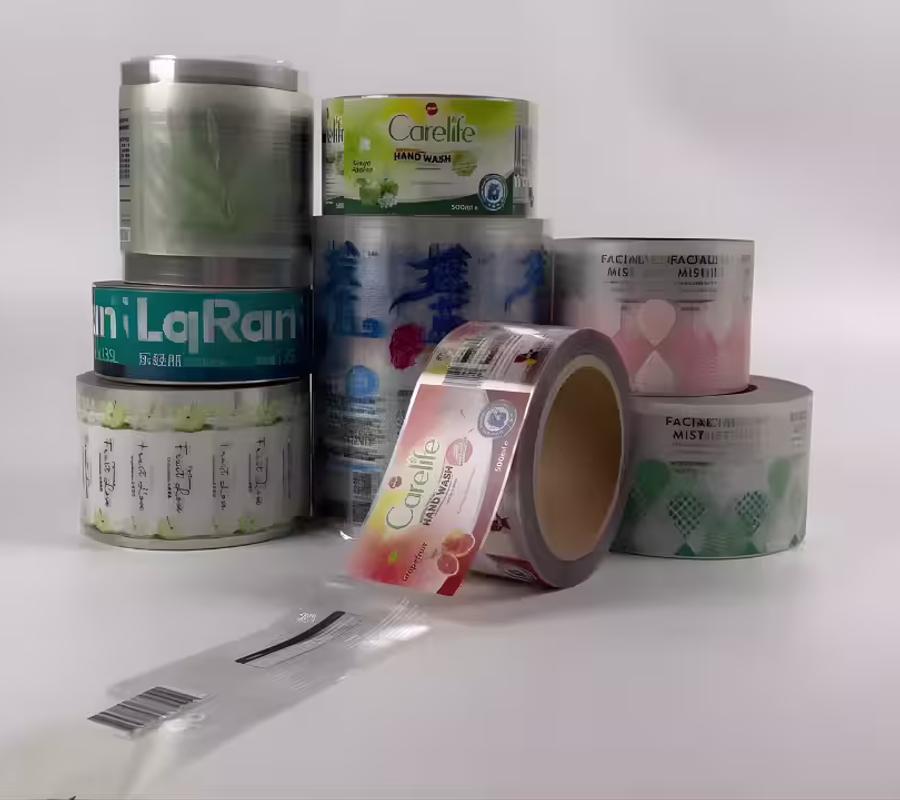

Transparent polypropylene creating the 'no-label' look for premium products

Key Benefits

Premium 'no-label' appearance
Excellent moisture resistance
Superior dimensional stability
Good chemical resistance

UAE Insight: Commands premium pricing in Dubai's luxury retail sector. Signals quality and transparency.

Opaque polypropylene combining durability with excellent printability

Key Benefits

Excellent water resistance
Bright white for vibrant colors
Tear-resistant
Good conformability

UAE Insight: Optimal cost-performance balance for moisture resistance in GCC markets.

Pearlescent BOPP with microscopic voids for cost-effective synthetic performance

Key Benefits

Lower cost than solid BOPP
Pearlescent appearance
Good moisture resistance
Cost-effective synthetic option

UAE Insight: Works well for GCC distribution but less suitable for extended shipping/handling.

Vacuum-deposited aluminum layer creating brilliant metallic appearance

Key Benefits

Brilliant metallic look
No foil stamping needed
Enhanced shelf appeal
Light barrier properties

UAE Insight: Popular in GCC markets with strong affinity for premium metallic finishes.

Ultra-flexible film that stretches with squeezable containers

Key Benefits

Stretches without tearing
Excellent chemical resistance
Conforms to irregular shapes
Wide temperature range

UAE Insight: Essential for flexible packaging. Withstands UAE's extreme temperatures.

Premium film offering exceptional durability and chemical resistance

Key Benefits

Exceptional heat resistance
Superior chemical resistance
Very high tear strength
Long-term durability (10+ years)

UAE Insight: Essential for harsh environments and long-term outdoor use in UAE climate.

Versatile thick film with excellent conformability and outdoor durability

Key Benefits

Exceptional conformability
Good chemical resistance
Outdoor durability (5-7 years)
Available in various thicknesses

UAE Insight: Performs well in UAE's intense UV exposure with proper UV-resistant inks.

Substrate Selection Guide

Systematic evaluation framework to match materials to your specific application requirements

Application Surface

Surface energy determines substrate compatibility

High energy (glass, metal): All substrates work
Medium energy (painted plastics, PET): Paper or films
Low energy (PE, PP): Film substrates recommended

Environmental Exposure

Moisture, chemicals, temperature, and UV resistance

Occasional condensation: Varnished paper or BOPP
Frequent water contact: Film substrates mandatory
Chemical exposure: PET with specialized adhesives

Product Lifecycle

Duration of label performance requirements

Short-term (days): Thermal paper acceptable
Medium-term (months): Paper or BOPP suitable
Long-term (years): PET or vinyl required

Aesthetic Requirements

Visual appeal and brand positioning

Premium: Clear films, metallic, holographic
Value: Semi-gloss paper, white BOPP
Natural: Uncoated paper, matte finishes

Regulatory Compliance

Industry-specific material requirements

Food contact: FDA or EU certified materials
Pharmaceutical: GMP compliance required
Chemical: GHS/BS5609 compliant materials

Cost vs. Performance

Balance budget with performance needs

Economy: Semi-gloss paper (baseline cost)
Mid-range: White BOPP (1.4-1.6x paper)
Premium: PET, specialty films (2-3x paper)

UAE Market Considerations

Unique environmental challenges in the UAE significantly impact substrate selectionapplies thin polymer films over printed labels, providing protection, aesthetic enhancement, or functional properties.

Extreme Temperature

Clear, reflective film creating high-shine finish.

Recommendation: Film substrates outperform paper. High-tack adhesives maintain bond.

Humidity Variations

Coastal areas 60-90% humidity causes paper dimensional changes

Recommendation: Film substrates immune to humidity. Essential for coastal distribution.

Intense UV Radiation

Year-round intense sunlight causes rapid fading and degradation

Recommendation: UV-curable inks strongly recommended. UV stabilizers for outdoor use.

GCC Market Preferences

Strong affinity for premium finishes, gold/silver foiling, vibrant colors

Recommendation: Holographic and metallic substrates well-received. Quality perception critical.

GCC Market Preferences

Premium Finishes

Strong cultural affinity for luxury presentation
Gold and silver foiling highly popular
Holographic substrates well-received
Quality perception critical in purchasing

Multilingual Requirements

Arabic language mandatory in GCC markets
English common as secondary language
Additional languages for imports
Substrate must accommodate text density

Technical Specifications Comparison

Substrate Type	Temperature Range	Moisture Resistance	Chemical Resistance	Cost Index
Semi-Gloss Paper	-10°C to +60°C	Poor	Poor	1.0x (baseline)
Cast Coated Paper	-10°C to +60°C	Moderate	Poor	1.3-1.5x
White BOPP	-20°C to +80°C	Excellent	Good	1.4-1.6x
Clear BOPP	-20°C to +80°C	Excellent	Good	1.5-1.7x
PE Film	-40°C to +80°C	Excellent	Good	1.6-1.9x
PET Film	-40°C to +150°C	Excellent	Excellent	2.2-3.0x

Substrate Type	Temperature Range	Moisture Resistance
Semi-Gloss Paper	-10°C to +60°C	Poor
Cast Coated Paper	-10°C to +60°C	Moderate
White BOPP	-20°C to +80°C	Excellent
Clear BOPP	-20°C to +80°C	Excellent
PE Film	-40°C to +80°C	Excellent
PET Film	-40°C to +150°C	Excellent

Substrate Type	Chemical Resistance	Cost Index
Semi-Gloss Paper	Poor	1.0x (baseline)
Cast Coated Paper	Poor	1.3-1.5x
White BOPP	Good	1.4-1.6x
Clear BOPP	Good	1.5-1.7x
PE Film	Good	1.6-1.9x
PET Film	Excellent	2.2-3.0x

10-Color Flexographic Press
‍Exceptional print quality on all substrates with inline varnish, embossing, and cold foiling capabilities

6-Color Offset Press with CTP
‍Superior print quality for paper substrates with spot UV and high-precision registration (±0.1mm)

Material Sourcing Expertise
‍Access to global substrate suppliers, specialty materials, and sustainable options with full certification documentation

Technical Consultation
‍Free substrate selection consultation, performance testing, and sample provision for your specific application

Label Substrate Materials Guide

Table of Contents

Why Label Substrate Selection Matters

Paper Substrates

Synthetic Films

Specialty Materials

Paper Label Substrates

Semi-Gloss Paper

Specifications

Best for:

Ideal Applications

High-Gloss Paper

Specifications

Best for:

Ideal Applications

Matte Paper

Specifications

Best for:

Ideal Applications

High-Gloss Paper

Specifications

Best for:

Ideal Applications

Uncoated Paper

Specifications

Best for:

Ideal Applications

Thermal Paper

Specifications

Best for:

Ideal Applications

Need Help Selecting the Right Substrate?

Synthetic Film Substrates

Clear BOPP

Specifications

Key Benefits

Ideal Applications

White BOPP

Specifications

Key Benefits

Ideal Applications

Cavitated BOPP

Specifications

Key Benefits

Ideal Applications

Metallized BOPP

Specifications

Key Benefits

Ideal Applications

Polyethylene (PE) Film

Specifications

Key Benefits

Ideal Applications

Polyester (PET) Film

Specifications

Key Benefits

Ideal Applications

Vinyl (PVC) Film

Specifications

Key Benefits

Ideal Applications

Substrate Selection Guide

Application Surface

Environmental Exposure

Product Lifecycle

Aesthetic Requirements

Regulatory Compliance

Cost vs. Performance

UAE Market Considerations

Extreme Temperature

Humidity Variations

Intense UV Radiation

GCC Market Preferences

GCC Market Preferences

Premium Finishes

Multilingual Requirements

Technical Specifications Comparison

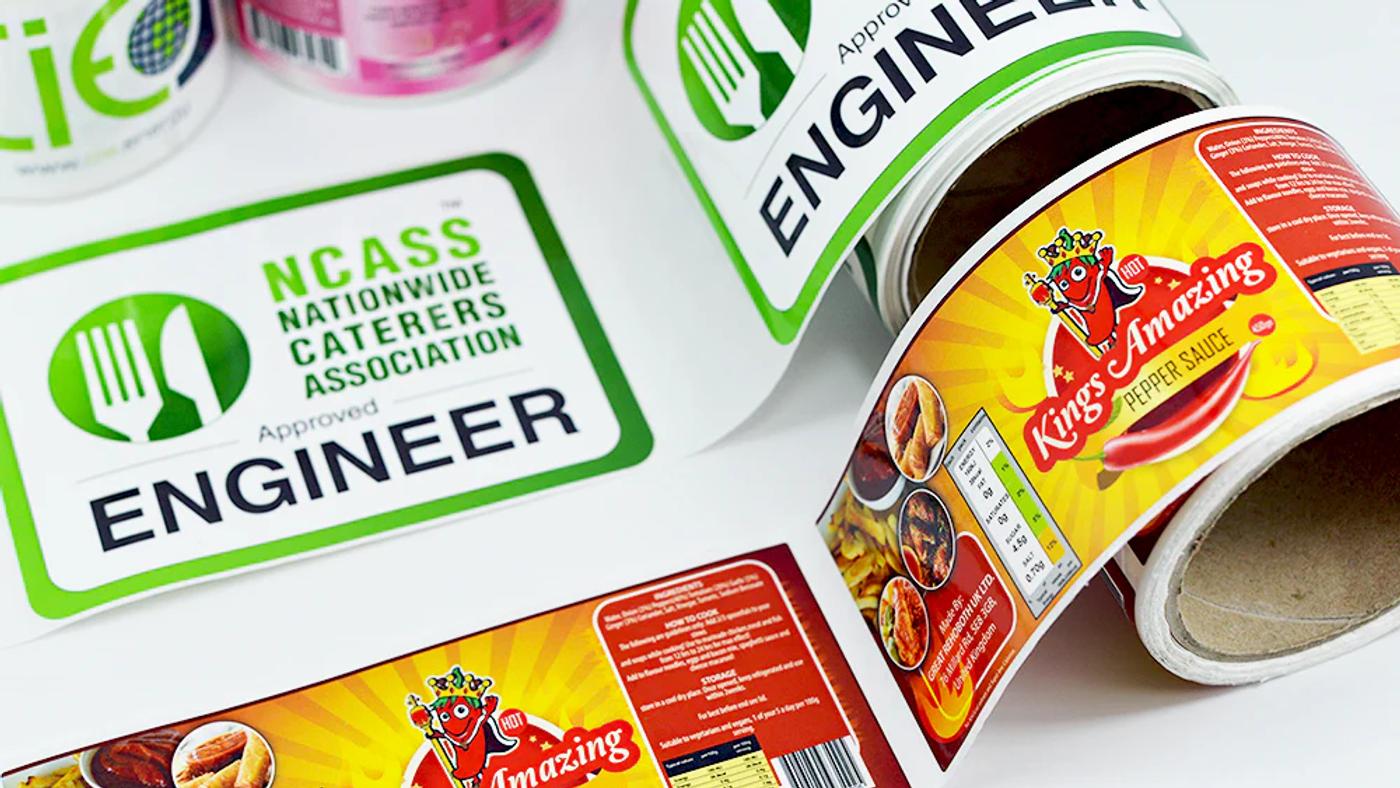

ASAS Label Substrate Expertise
